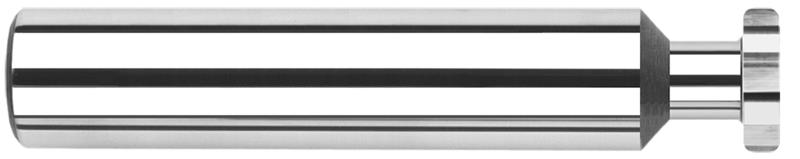

0.3750 in. (3/8) Cutter Diameter x 0.0100 in. Radius x 0.1250 in. (1/8) Width x 0.1870 in. (3/16) Neck Length 8 Flute Carbide Corner Radius Deep Keyseat Cutter

  • Item Code: 916860
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Weldon Flat N
Number of Flutes 8
Radial Depth of Cut 0.1150"
Top Corner Radius 0.01
Decimal Diameter 0.3750"
Neck Length 0.1870" (3/16)
Fractional Diameter 3/8"
Neck Diameter 0.1250" (1/8)
Overall Length 2.5000" (2-1/2)
Radius Decimal 0.0100"
Coating/Finish None
Material Solid Carbide
Cutter Width 0.1250" (1/8)
Reach Multiple (0.5x)
Shank Diameter 0.3750" (3/8)
Type II
