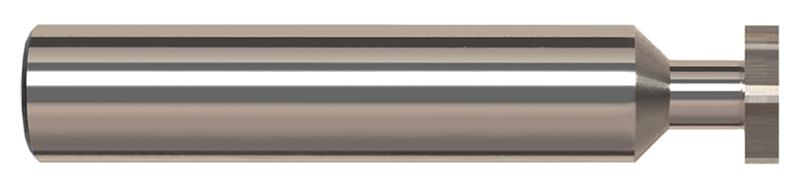

0.5000 in. (1/2) Cutter Diameter x 0.1250 in. (1/8) Width x 0.2500 in. (1/4) Neck Length 6 Flute Carbide Square Deep Keyseat Cutter for Non-Ferrous

  • Item Code: 917560
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized for aluminum and aluminum alloys with excellent performance in copper, brass, and bronze alloys
    • Large flute opening and sharper cutting edge for improved performance in aluminum and other non-ferrous applications
    • Offered with TiB2 coating to minimize galling and enhance performance
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Length 0.2500" (1/4)
Radial Depth of Cut 0.1620"
Shank Diameter 0.5000" (1/2)
Brand Harvey Tool
Overall Length 3.0000" (3)
Number of Flutes 6
Coating/Finish None
Material Solid Carbide
Neck Diameter 0.1560" (5/32)
Cutter Width 0.1250" (1/8)
Fractional Diameter 1/2"
Reach Multiple (0.5x)
Decimal Diameter 0.5000"
Type II
