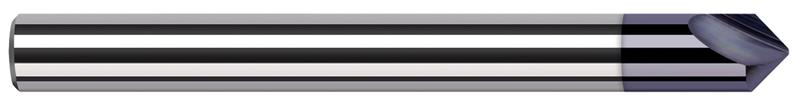

0.1250 in. (1/8) Shank Diameter x 0.0200 in. Radius x 90 Deg. Included 2 Flute AlTiN Coated Carbide Marking Cutter

  • Item Code: 918445-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Milling Legible Part Numbers in Difficult-to-Machine Materials
    • Radiused Tip Design for Improved Strength
    • 2 Flute Cutting Design Has Improved Strength Over Single Point Engravers
    • Produces Radius in Bottom of Groove
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.0542"
Brand Harvey Tool
Material Solid Carbide
Shank Diameter Fractional 1/8"
Shank Diameter Decimal 0.1250"
Coating AlTiN
Decimal Cutting Diameter 0.1250"
Radius Decimal 0.0200"
Angle per Side 45
Fractional Cutting Diameter 1/8"
Included Angle 90
Overall Length 1.5000" (1-1/2)
Number of Flutes 2
