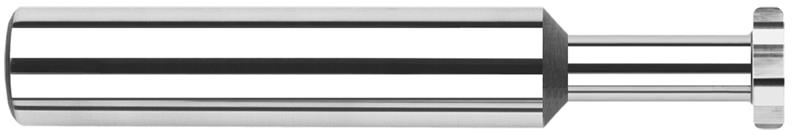

0.3125 in. (5/16) Cutter Diameter x 0.0100 in. Radius x 0.0620 in. (1/16) Width x 0.4680 in. (15/32) Neck Length 6 Flute Carbide Corner Radius Keyseat Cutter

  • Item Code: 921130
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Top Corner Radius 0.01
Type I
Neck Length 0.4680" (15/32)
Cutter Width 0.0620" (1/16)
Decimal Diameter 0.3125"
Fractional Diameter 5/16"
Material Solid Carbide
Radius Decimal 0.0100"
Reach Multiple (1.5x)
Coating/Finish None
Neck Diameter 0.1560" (5/32)
Number of Flutes 6
Radial Depth of Cut 0.0680"
Shank Diameter 0.3125" (5/16)
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
