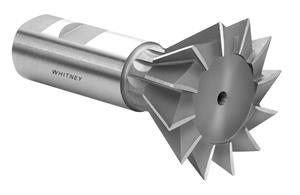

2-1/4 in. x 60 deg. HSS Dovetail Milling Cutter - TiN Coated/Straight Tooth

  • Item Code: 922560T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Dovetail Milling Cutters High Speed Steel

Straight Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Single Angle
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672152742
Coating/Finish TiN
Tooth Configuration Straight
Cut Width 1-1/16"
Shank Diameter 1"
Shank Type Weldon
Material High Speed Steel
Metric Cutting Diameter 57.15 mm
Number of Teeth 12
OD Tolerance 0.010"
Shank Diameter Tolerance +0", -0.0005"
Style 60 Degree
Included Angle 60
Overall Length (Inch) 3-3/4"
Brand Whitney Tool
Angle Tolerance 1/4 deg.
Fractional Cutting Diameter 2-1/4"
Width Tolerance 0.015"
