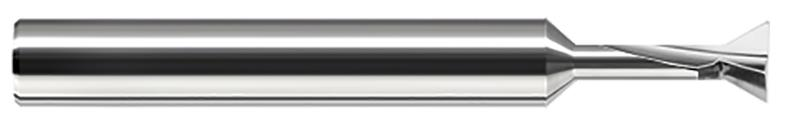

0.0930 in. (3/32) Cutter Diameter x 0.0100 in. Radius x 0.0930 in. (3/32) Neck Length x 60 Deg. Included 2 Flute Carbide Tip Radius Dovetail Cutter

  • Item Code: 925306
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Cutting Diameter 3/32"
Length of Cut 0.0450"
Neck Diameter 0.0560"
Shank Diameter 0.1250" (1/8)
Brand Harvey Tool
Neck Length 0.0930" (3/32)
Decimal Cutting Diameter 0.0930"
Included Angle 60
Radius Decimal 0.0100"
Angle per Side 30
Coating/Finish None
Material Solid Carbide
Number of Flutes 2
Overall Length 1.5000" (1-1/2)
