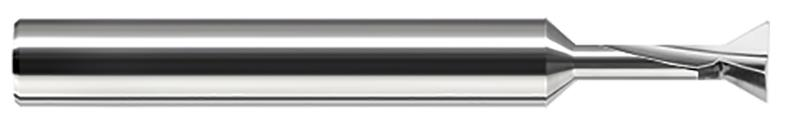

0.3750 in. (3/8) Cutter Diameter x 0.0100 in. Radius x 0.2500 in. (1/4) Neck Length x 60 Deg. Included 3 Flute Carbide Tip Radius Dovetail Cutter

  • Item Code: 925324
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.1740"
Neck Length 0.2500" (1/4)
Angle per Side 30
Coating/Finish None
Included Angle 60
Material Solid Carbide
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
Fractional Cutting Diameter 3/8"
Number of Flutes 3
Radius Decimal 0.0100"
Decimal Cutting Diameter 0.3750"
Length of Cut 0.1870" (3/16)
Shank Diameter 0.3750" (3/8)
