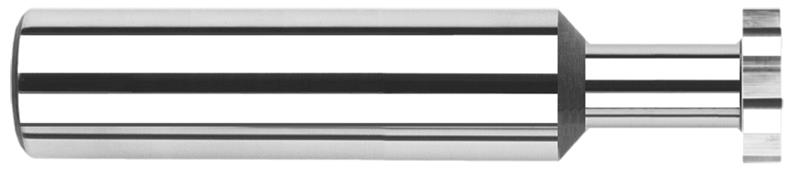

0.1875 in. (3/16) Cutter Diameter x 0.0310 in. (1/32) Width x 0.1870 in. (3/16) Neck Length 6 Flute Carbide Square Deep Keyseat Cutter

  • Item Code: 928931
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radial Depth of Cut 0.0520"
Shank Diameter 0.1875" (3/16)
Cutter Width 0.0310" (1/32)
Decimal Diameter 0.1875"
Brand Harvey Tool
Coating/Finish None
Fractional Diameter 3/16"
Type II
Material Solid Carbide
Neck Diameter 0.0620" (1/16)
Neck Length 0.1870" (3/16)
Reach Multiple (1x)
Number of Flutes 6
Overall Length 2.0000" (2)
