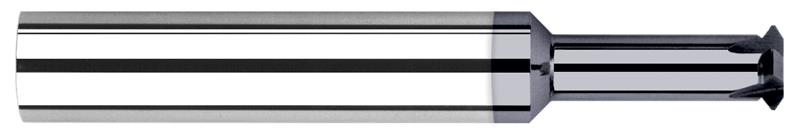

0.4950 in. Cutter Diameter x 2.2500 in. (2-1/4) Reach 6 Flute AlTiN Nano Coated Carbide Single Form #3/4 Thread Milling Cutter for Hardened Steels

  • Item Code: 930380-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steel 48-68Rc
    • Single thread form designed?to mill common pitch sizes
    • Tip of included angle ground to a flat for increased wear resistance
    • Large rigid core diameter and eccentric relief for improved strength
    • Mills left hand and right hand threads
    • Cuts internal and external 60 degree UN threads
    • h6 shank tolerance for high precision tool holders
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for improved edge retention
    • CNC ground in the USA

Tech Specs

Back To Top
Maximum Depth of Thread 2.2500" (2-1/4)
Size 4-Mar
Cutter Diameter Decimal 0.4950"
Neck Diameter 0.3850"
Tip Flat 0.0063"
Overall Length 4.0000" (4)
Angle per Side 30
Brand Harvey Tool
Length of Cut 0.0690"
Material Solid Carbide
Shank Diameter 0.5000" (1/2)
Coating/Finish AlTiN Nano
Included Angle 60
Number of Flutes 6
