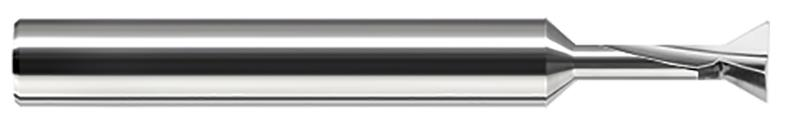

0.1875 in. (3/16) Cutter Diameter x 0.0100 in. Radius x 0.1870 in. (3/16) Neck Length x 90 Deg. Included 2 Flute Carbide Tip Radius Dovetail Cutter

  • Item Code: 931012
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reduced neck for long reach machining
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radius Decimal 0.0100"
Coating/Finish None
Fractional Cutting Diameter 3/16"
Material Solid Carbide
Number of Flutes 2
Overall Length 2.0000" (2)
Shank Diameter 0.1875" (3/16)
Decimal Cutting Diameter 0.1875"
Included Angle 90
Length of Cut 0.0470" (3/64)
Neck Length 0.1870" (3/16)
Angle per Side 45
Neck Diameter 0.1220"
Brand Harvey Tool
