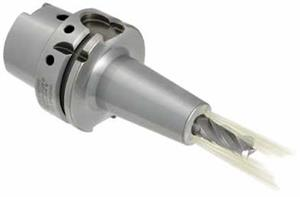

3/16 Inch Shank x 3.15 Inch Length HSK63A ShrinkFIT Toolholders with CoolBLAST
- Item Code: 93114B
- Brand: Techniks
- Unit Size: 1
Description
CoolBLAST coolant ports sprays coolant thru-the-bore right on the cut, even at high RPM's, for maximum feed rates. Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle standard, comes with coolant-thru set screw installed.
Features
Back To Top- Blast coolant right on the cut for maximum feed rates
- T.I.R. only 0.0001"
- Balanced to 25,000 RPM at G2.5
Tech Specs
Back To Top| Body Diameter (in) | 0.87 |
|---|---|
| Overall Length (in) | 4.41 |
| Gage Length (in) | 3.15 |
| Overall Diameter (in) | 2.48 |
| Gage Length-Face Contact (in) | 3.15 |
| Material | H13 Steel |
| Shank Range (mm) | Exact Size |
| Type | ShrinkFIT Tool Holder |
| Gage Length-Face Contact (mm) | 80 |
| Unit of Tool | Inch |
| Body Diameter (mm) | 22.1 |
| Brand | Techniks |
| Mount | HSK63A |
| Nose Diameter (in) | 0.63 |
| Overall Diameter (mm) | 63 |
| Shank Size (in) | 0.1875 |
| Style | CoolBLAST |
| Gage Length (mm) | 80 |
| Nose Diameter (mm) | 16 |
| Shank Range (in) | Exact Size |
| Collet Series | N/A |
| Overall Length (mm) | 112 |
| Shank Size (mm) | 4.76 |
