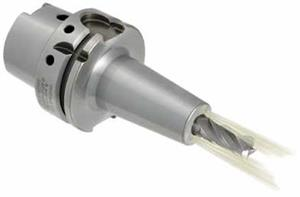

1/2 Inch Shank x 3.54 Inch Length HSK63A ShrinkFIT Toolholders with CoolBLAST
- Item Code: 93119B
- Brand: Techniks
- Unit Size: 1
Description
CoolBLAST coolant ports sprays coolant thru-the-bore right on the cut, even at high RPM's, for maximum feed rates. Techniks ShrinkFIT holders have T.I.R. of 0.0001" or better. Balanced to 25,000 RPM at G2.5 tolerance. Ideal for high speed or high torque machining applications. Spindle speeds and feeds are increased to reduce cycle times & increase R.O.I. Each holder is Techniks Certified for accuracy and balance and comes with an individual lab report. Tool life is extended by as much as 700%, stretching your budget farther. Coolant-thru spindle standard, comes with coolant-thru set screw installed.
Features
Back To Top- Blast coolant right on the cut for maximum feed rates
- T.I.R. only 0.0001"
- Balanced to 25,000 RPM at G2.5
Tech Specs
Back To Top| Overall Length (mm) | 121.9 |
|---|---|
| Type | ShrinkFIT Tool Holder |
| Brand | Techniks |
| Shank Range (in) | Exact Size |
| Shank Range (mm) | Exact Size |
| Body Diameter (mm) | 34.04 |
| Overall Diameter (in) | 2.48 |
| Gage Length (mm) | 89.9 |
| Overall Length (in) | 4.8 |
| Shank Size (in) | 0.5 |
| Collet Series | N/A |
| Gage Length (in) | 3.54 |
| Material | H13 Steel |
| Nose Diameter (in) | 1.1 |
| Shank Size (mm) | 12.7 |
| Gage Length-Face Contact (in) | 3.54 |
| Body Diameter (in) | 1.34 |
| Gage Length-Face Contact (mm) | 89.9 |
| Mount | HSK63A |
| Nose Diameter (mm) | 27.9 |
| Overall Diameter (mm) | 63 |
| Style | CoolBLAST |
| Unit of Tool | Inch |
