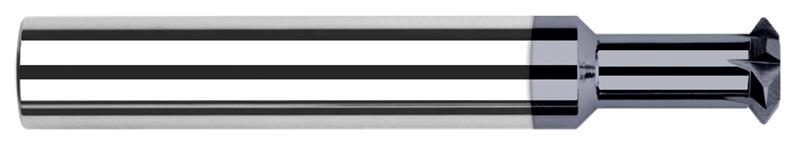

0.3750 in. (3/8) Cutter Diameter x 0.0100 in. Radius x 0.1330 in. Width x 1.5000 in. (1-1/2) Neck Length 6 Flute AlTiN Coated Carbide Tip Radius Double Angle Shank Cutter

  • Item Code: 931924-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Radius on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.2500" (1/4)
Angle per Side 45
Included Angle 90
Brand Harvey Tool
Number of Flutes 6
Overall Length Fractional 3-1/2"
Radius Decimal 0.0100"
Material Solid Carbide
Overall Length Decimal 3.5000"
Cutter Width 0.1330"
Fractional Cutting Diameter 3/8"
Coating AlTiN
Decimal Cutting Diameter 0.3750"
Neck Length 1.5000" (1-1/2)
Shank Diameter 0.3750" (3/8)
