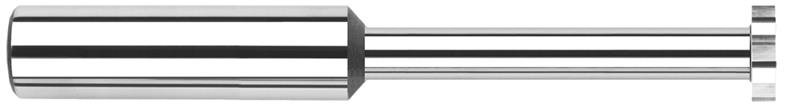

0.5000 in. (1/2) Cutter Diameter x 0.1250 in. (1/8) Width x 2.0000 in. (2) Neck Length 8 Flute Carbide Square Keyseat Cutter

  • Item Code: 933160
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Length 2.0000" (2)
Overall Length 4.0000" (4)
Radial Depth of Cut 0.1150"
Neck Diameter 0.2500" (1/4)
Fractional Diameter 1/2"
Material Solid Carbide
Number of Flutes 8
Brand Harvey Tool
Decimal Diameter 0.5000"
Reach Multiple (4x)
Cutter Width 0.1250" (1/8)
Coating/Finish None
Shank Diameter 0.5000" (1/2)
Type I
