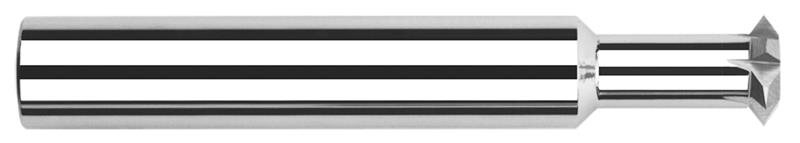

0.5000 in. (1/2) Cutter Diameter x 0.0500 in. Width x 1.5000 in. (1-1/2) Neck Length 6 Flute Carbide Pointed Double Angle Shank Cutter

  • Item Code: 934332
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
    • Reduced neck for long reach machining
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.0500"
Angle per Side 15
Overall Length Decimal 4.0000"
Overall Length Fractional 4"
Fractional Cutting Diameter 1/2"
Number of Flutes 6
Brand Harvey Tool
Material Solid Carbide
Shank Diameter 0.5000" (1/2)
Coating None
Included Angle 30
Neck Diameter 0.3120" (5/16)
Neck Length 1.5000" (1-1/2)
Decimal Cutting Diameter 0.5000"
Type I
