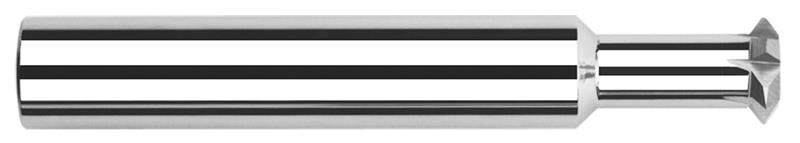

0.3750 in. (3/8) Cutter Diameter x 0.0100 in. Radius x 0.0840 in. Width x 0.5000 in. (1/2) Neck Length 6 Flute Carbide Tip Radius Double Angle Shank Cutter

  • Item Code: 934724
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Radius on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 60
Angle per Side 30
Brand Harvey Tool
Material Solid Carbide
Fractional Cutting Diameter 3/8"
Number of Flutes 6
Radius Decimal 0.0100"
Cutter Width 0.0840"
Overall Length Decimal 2.5000"
Overall Length Fractional 2-1/2"
Neck Diameter 0.2500" (1/4)
Coating None
Shank Diameter 0.3750" (3/8)
Decimal Cutting Diameter 0.3750"
Neck Length 0.5000" (1/2)
