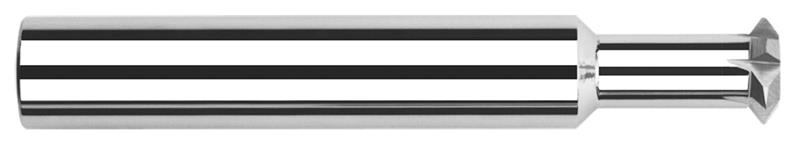

0.5000 in. (1/2) Cutter Diameter x 0.0100 in. Radius x 0.1200 in. Width x 0.5000 in. (1/2) Neck Length 6 Flute Carbide Tip Radius Double Angle Shank Cutter

  • Item Code: 934732
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Radius on tip for improved strength and wear resistance
    • Reduced neck for long reach machining
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 30
Material Solid Carbide
Coating None
Cutter Width 0.1200"
Included Angle 60
Overall Length Decimal 3.0000"
Neck Length 0.5000" (1/2)
Decimal Cutting Diameter 0.5000"
Fractional Cutting Diameter 1/2"
Neck Diameter 0.3120" (5/16)
Number of Flutes 6
Radius Decimal 0.0100"
Brand Harvey Tool
Overall Length Fractional 3"
Shank Diameter 0.5000" (1/2)
