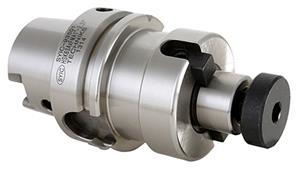

HSK63A x FMA 1.0 Inch x 2.37 Inch Precision Face Mill Arbor
- Item Code: 93501
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offerr H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact. Face Mills are CoolBLAST compatible for coolant through capability using a Techniks coolant capable arbor screw.
Tech Specs
Back To Top| Gage Length (in) | 2.37 |
|---|---|
| Gage Length (mm) | 60.2 |
| Gage Length-Face Contact (in) | 2.37 |
| Gage Length-Face Contact (mm) | 60.2 |
| Overall Diameter (mm) | 63 |
| Body Width (in) | 2.2 |
| Body Width (mm) | 55.9 |
| Hub Diameter (mm) | 25.4 |
| Brand | Techniks |
| Type | Face Mill Arbor |
| Taper Type | HSK63A |
| Coolant Supply | Optional through Arbor Screw |
| Hub Diameter (in) | 1 |
| Material | 8620 Steel |
| Overall Diameter (in) | 2.48 |
| Pilot Length (in) | 0.687 |
| Pilot Length (mm) | 17.4 |
| Style | Single Ended |
