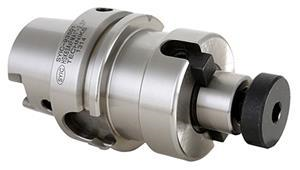

HSK63A x FMA 1-1/4 x 2.75 Inch Precision Face Mill Arbor
- Item Code: 93502
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offerr H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact. Face Mills are CoolBLAST compatible for coolant through capability using a Techniks coolant capable arbor screw.
Tech Specs
Back To Top| Body Width (mm) | 69.9 |
|---|---|
| Gage Length-Face Contact (in) | 2.75 |
| Gage Length-Face Contact (mm) | 69.9 |
| Pilot Length (in) | 0.687 |
| Hub Diameter (in) | 1.25 |
| Overall Diameter (in) | 2.48 |
| Pilot Length (mm) | 17.4 |
| Gage Length (in) | 2.75 |
| Gage Length (mm) | 69.9 |
| Coolant Supply | Optional through Arbor Screw |
| Type | Face Mill Arbor |
| Material | 8620 Steel |
| Body Width (in) | 2.75 |
| Brand | Techniks |
| Hub Diameter (mm) | 31.75 |
| Overall Diameter (mm) | 63 |
| Style | Single Ended |
| Taper Type | HSK63A |
