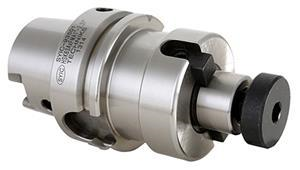

HSK63A x FMA 1-1/4 x 4 Inch Precision Face Mill Arbor
- Item Code: 93530
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offerr H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact. Face Mills are CoolBLAST compatible for coolant through capability using a Techniks coolant capable arbor screw.
Tech Specs
Back To Top| Pilot Length (mm) | 17.4 |
|---|---|
| Gage Length (mm) | 101.6 |
| Hub Diameter (in) | 1.25 |
| Overall Diameter (in) | 2.48 |
| Gage Length-Face Contact (in) | 4 |
| Body Width (mm) | 69.9 |
| Coolant Supply | Optional through Arbor Screw |
| Gage Length-Face Contact (mm) | 101.6 |
| Brand | Techniks |
| Gage Length (in) | 4 |
| Hub Diameter (mm) | 31.75 |
| Material | 8620 Steel |
| Type | Face Mill Arbor |
| Body Width (in) | 2.75 |
| Pilot Length (in) | 0.687 |
| Style | Single Ended |
| Overall Diameter (mm) | 63 |
| Taper Type | HSK63A |
