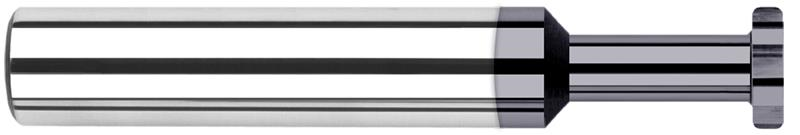

0.1875 in. (3/16) Cutter Diameter x 0.0150 in. (1/64) Radius x 0.0620 in. (1/16) Width x 0.2810 in. (9/32) Neck Length 6 Flute AlTiN Coated Carbide Corner Radius Keyseat Cutter

  • Item Code: 937762-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish AlTiN
Radius Fractional 1/64"
Reach Multiple (1.5x)
Shank Diameter 0.1875" (3/16)
Top Corner Radius 0.015
Type I
Neck Diameter 0.0930" (3/32)
Radial Depth of Cut 0.0370"
Fractional Diameter 3/16"
Number of Flutes 6
Cutter Width 0.0620" (1/16)
Neck Length 0.2810" (9/32)
Radius Decimal 0.0150"
Weldon Flat N
Decimal Diameter 0.1875"
Material Solid Carbide
Overall Length 2.0000" (2)
Brand Harvey Tool
