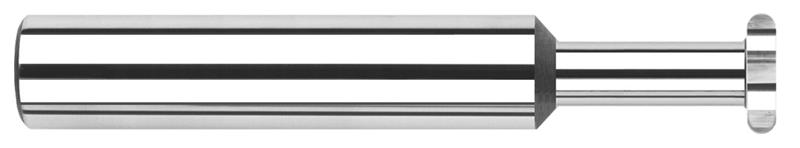

0.3125 in. (5/16) Cutter Diameter x 0.0100 in. Radius x 0.5000 in. (1/2) Neck Length 6 Flute Carbide Full Radius Keyseat Cutter

  • Item Code: 944410
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radial Depth of Cut 0.0680"
Reach Multiple (1.5x)
Cutter Width 0.0200"
Neck Length 0.5000" (1/2)
Material Solid Carbide
Shank Diameter 0.3125" (5/16)
Brand Harvey Tool
Coating/Finish None
Decimal Diameter 0.3125"
Fractional Diameter 5/16"
Number of Flutes 6
Radius Decimal 0.0100"
Neck Diameter 0.1560" (5/32)
Overall Length 2.5000" (2-1/2)
Type I
