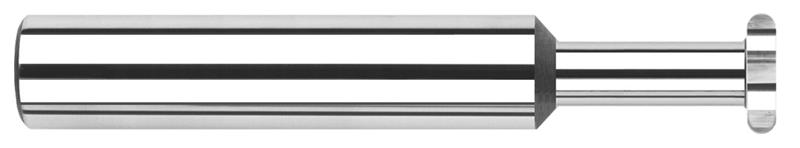

0.3125 in. (5/16) Cutter Diameter x 0.0625 in. (1/16) Radius x 0.5000 in. (1/2) Neck Length 6 Flute Carbide Full Radius Keyseat Cutter

  • Item Code: 944462
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Diameter 5/16"
Neck Diameter 0.1560" (5/32)
Coating/Finish None
Cutter Width 0.1250" (1/8)
Type I
Decimal Diameter 0.3125"
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Radius Fractional 1/16"
Radius Decimal 0.0625"
Reach Multiple (1.5x)
Brand Harvey Tool
Neck Length 0.5000" (1/2)
Material Solid Carbide
Radial Depth of Cut 0.0680"
Shank Diameter 0.3125" (5/16)
