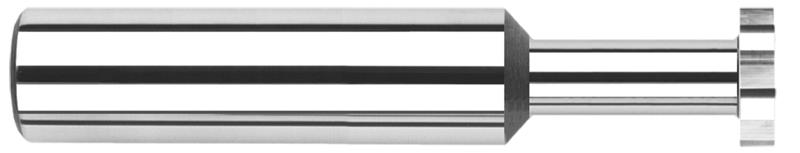

0.2362 in. (6 mm) Cutter Diameter x 0.0310 in. (1/32) Width x 0.3540 in. Neck Length 6 Flute Carbide Square Keyseat Cutter

  • Item Code: 947531
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Length 0.3540"
Decimal Diameter 0.2362"
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Metric Diameter 6.00 mm
Neck Diameter 0.1180" (3 mm)
Reach Multiple (1.5x)
Brand Harvey Tool
Radial Depth of Cut 0.0490"
Coating/Finish None
Type I
Shank Diameter 0.2500" (1/4)
Cutter Width 0.0310" (1/32)
Material Solid Carbide
