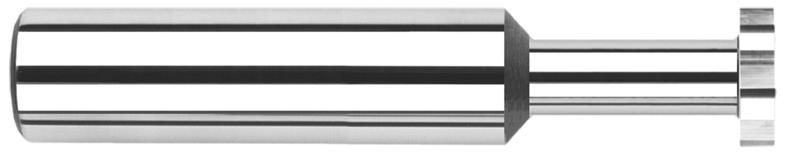

0.2362 in. (6 mm) Cutter Diameter x 0.0930 in. (3/32) Width x 0.3540 in. Neck Length 6 Flute Carbide Square Keyseat Cutter

  • Item Code: 947593
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radial Depth of Cut 0.0490"
Type I
Decimal Diameter 0.2362"
Metric Diameter 6.00 mm
Overall Length 2.5000" (2-1/2)
Coating/Finish None
Reach Multiple (1.5x)
Neck Diameter 0.1180" (3 mm)
Number of Flutes 6
Brand Harvey Tool
Cutter Width 0.0930" (3/32)
Neck Length 0.3540"
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
