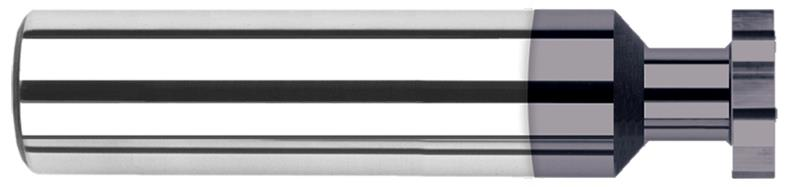

0.6250 in. (5/8) Cutter Diameter x 0.2500 in. (1/4) Width x 0.3120 in. (5/16) Neck Length 8 Flute AlTiN Coated Carbide Square Deep Keyseat Cutter

  • Item Code: 950680-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Shank Diameter 0.6250" (5/8)
Neck Length 0.3120" (5/16)
Reach Multiple (0.5x)
Fractional Diameter 5/8"
Decimal Diameter 0.6250"
Coating/Finish AlTiN
Neck Diameter 0.2030" (13/64)
Overall Length 3.5000" (3-1/2)
Type II
Cutter Width 0.2500" (1/4)
Number of Flutes 8
Material Solid Carbide
Radial Depth of Cut 0.2010"
