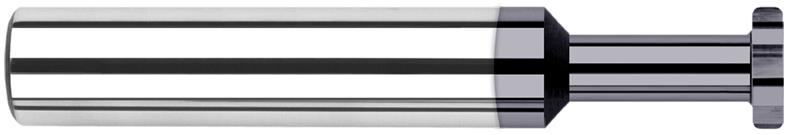

0.1870 in. Cutter Diameter x 0.0050 in. Radius x 0.0400 in. Width x 0.2810 in. (9/32) Neck Length 6 Flute AlTiN Coated Carbide Corner Radius Keyseat Cutter

  • Item Code: 954740-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish AlTiN
Reach Multiple (1.5x)
Shank Diameter 0.1875" (3/16)
Radius Decimal 0.0050"
Type I
Cutter Width 0.0400"
Decimal Diameter 0.1870"
Neck Diameter 0.0930" (3/32)
Radial Depth of Cut 0.0370"
Number of Flutes 6
Brand Harvey Tool
Material Solid Carbide
Overall Length 2.0000" (2)
Top Corner Radius 0.005
Neck Length 0.2810" (9/32)
