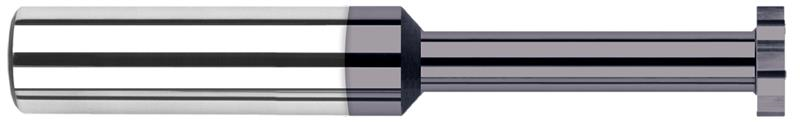

0.0620 in. (1/16) Cutter Diameter x 0.0620 in. (1/16) Width x 0.1870 in. (3/16) Neck Length 4 Flute AlTiN Coated Carbide Square Keyseat Cutter

  • Item Code: 955162-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.0310" (1/32)
Number of Flutes 4
Overall Length 1.5000" (1-1/2)
Radial Depth of Cut 0.0120"
Neck Length 0.1870" (3/16)
Type I
Brand Harvey Tool
Decimal Diameter 0.0620"
Reach Multiple (3x)
Coating/Finish AlTiN
Cutter Width 0.0620" (1/16)
Material Solid Carbide
Fractional Diameter 1/16"
Shank Diameter 0.1250" (1/8)
