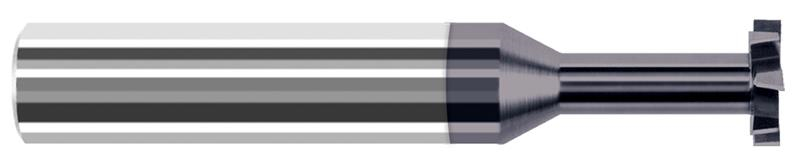

0.5000 in. (1/2) Cutter Diameter x 0.2500 in. (1/4) Width x 0.7500 in. (3/4) Neck Length 8 Flute AlTiN Coated Carbide Square Stagger Keyseat Cutter

  • Item Code: 955680-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design with alternating RH / LH shear flutes, RH cut
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Relieved to allow cutting on both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.2500" (1/4)
Reach Multiple (1.5x)
Radial Depth of Cut 0.1150"
Type I
Brand Harvey Tool
Cutter Width 0.2500" (1/4)
Overall Length 3.0000" (3)
Shank Diameter 0.5000" (1/2)
Coating/Finish AlTiN
Decimal Diameter 0.5000"
Material Solid Carbide
Neck Length 0.7500" (3/4)
Fractional Diameter 1/2"
Number of Flutes 8
