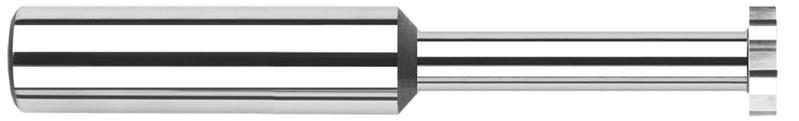

0.1562 in. (5/32) Cutter Diameter x 0.0470 in. (3/64) Width x 0.5000 in. (1/2) Neck Length 6 Flute Carbide Square Keyseat Cutter

  • Item Code: 956247
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.0470" (3/64)
Fractional Diameter 5/32"
Radial Depth of Cut 0.0290"
Number of Flutes 6
Shank Diameter 0.1875" (3/16)
Decimal Diameter 0.1562"
Material Solid Carbide
Brand Harvey Tool
Neck Length 0.5000" (1/2)
Coating/Finish None
Reach Multiple (3x)
Type I
Neck Diameter 0.0780" (5/64)
Overall Length 2.0000" (2)
