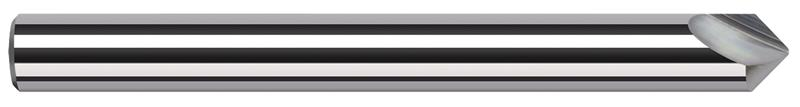

0.1875 in. (3/16) Shank Diameter x 0.0050 in. Radius x 30 Deg. Included 2 Flute Carbide Marking Cutter

  • Item Code: 958715
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Milling Legible Part Numbers in Difficult-to-Machine Materials
    • Radiused Tip Design for Improved Strength
    • 2 Flute Cutting Design Has Improved Strength Over Single Point Engravers
    • Produces Radius in Bottom of Groove
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.3356"
Angle per Side 15
Shank Diameter Decimal 0.1875"
Radius Decimal 0.0050"
Decimal Cutting Diameter 0.1875"
Number of Flutes 2
Overall Length 2.0000" (2)
Brand Harvey Tool
Fractional Cutting Diameter 3/16"
Material Solid Carbide
Shank Diameter Fractional 3/16"
Coating None
Included Angle 30
