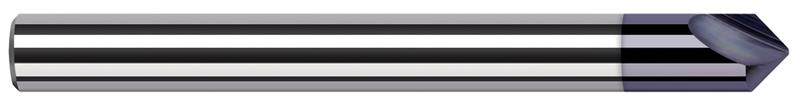

0.1875 in. (3/16) Shank Diameter x 0.0050 in. Radius x 90 Deg. Included 2 Flute AlTiN Coated Carbide Marking Cutter

  • Item Code: 958745-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Milling Legible Part Numbers in Difficult-to-Machine Materials
    • Radiused Tip Design for Improved Strength
    • 2 Flute Cutting Design Has Improved Strength Over Single Point Engravers
    • Produces Radius in Bottom of Groove
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radius Decimal 0.0050"
Brand Harvey Tool
Decimal Cutting Diameter 0.1875"
Fractional Cutting Diameter 3/16"
Material Solid Carbide
Number of Flutes 2
Shank Diameter Fractional 3/16"
Angle per Side 45
Length of Cut 0.0917"
Overall Length 2.0000" (2)
Shank Diameter Decimal 0.1875"
Coating AlTiN
Included Angle 90
