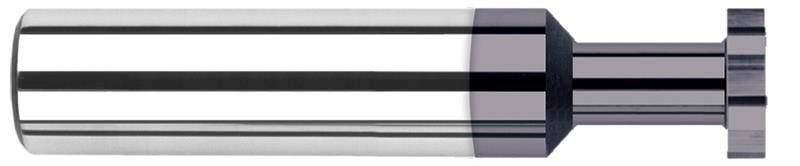

0.3750 in. (3/8) Cutter Diameter x 0.1250 in. (1/8) Width x 0.3750 in. (3/8) Neck Length 8 Flute AlTiN Coated Carbide Square Deep Keyseat Cutter

  • Item Code: 958960-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.1250" (1/8)
Overall Length 2.5000" (2-1/2)
Shank Diameter 0.3750" (3/8)
Type II
Fractional Diameter 3/8"
Reach Multiple (1x)
Brand Harvey Tool
Decimal Diameter 0.3750"
Material Solid Carbide
Cutter Width 0.1250" (1/8)
Number of Flutes 8
Coating/Finish AlTiN
Neck Length 0.3750" (3/8)
Radial Depth of Cut 0.1150"
