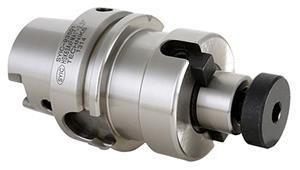

HSK100A x FMA 3/4 Inch x 2 Inch Precision Face Mill Arbor
- Item Code: 95901
- Brand: Techniks
- Unit Size: 1
Description
Techniks Face Mill Arbors offerr H6 arbor tolerance for less chatter and better tool life. Each arbor is lab certified for dimensional accuracy. The taper is ground to AT3 tolerance for maximum spindle contact. Face Mills are CoolBLAST compatible for coolant through capability using a Techniks coolant capable arbor screw.
Tech Specs
Back To Top| Overall Diameter (in) | 3.937 |
|---|---|
| Taper Type | HSK100 |
| Gage Length (mm) | 50.8 |
| Gage Length-Face Contact (mm) | 50.8 |
| Body Width (in) | 1.69 |
| Brand | Techniks |
| Gage Length-Face Contact (in) | 2 |
| Material | 8620 Steel |
| Pilot Length (mm) | 17.5 |
| Style | Single Ended |
| Pilot Length (in) | 0.69 |
| Body Width (mm) | 42.9 |
| Gage Length (in) | 2 |
| Overall Diameter (mm) | 100 |
| Coolant Supply | Optional through Arbor Screw |
| Hub Diameter (in) | 0.75 |
| Hub Diameter (mm) | 19.05 |
| Type | Face Mill Arbor |
