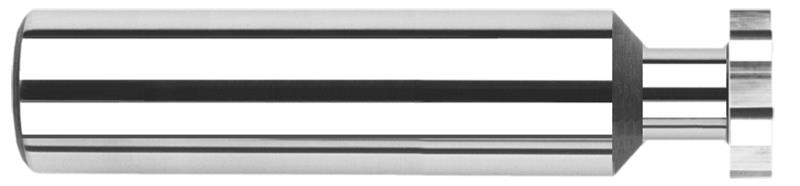

0.3120 in. Cutter Diameter x 0.0620 in. (1/16) Width x 0.0930 in. (3/32) Neck Length 10 Flute Carbide Square Max Keyseat Cutter

  • Item Code: 959430
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Reach Multiple (0.3x)
Radial Depth of Cut 0.1160"
Shank Diameter 0.3125" (5/16)
Brand Harvey Tool
Cutter Width 0.0620" (1/16)
Neck Length 0.0930" (3/32)
Neck Diameter 0.0630" (1.6 mm)
Decimal Diameter 0.3120"
Material Solid Carbide
Number of Flutes 10
Type III
Coating/Finish None
Overall Length 2.5000" (2-1/2)
