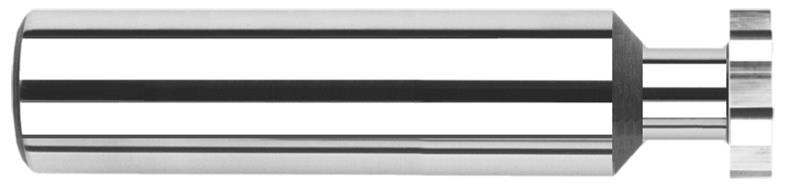

0.2500 in. (1/4) Cutter Diameter x 0.0470 in. (3/64) Width x 0.0780 in. (5/64) Neck Length 8 Flute Carbide Square Max Keyseat Cutter

  • Item Code: 964747
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Decimal Diameter 0.2500"
Reach Multiple (0.3x)
Shank Diameter 0.2500" (1/4)
Coating/Finish None
Fractional Diameter 1/4"
Neck Length 0.0780" (5/64)
Number of Flutes 8
Cutter Width 0.0470" (3/64)
Neck Diameter 0.0500"
Overall Length 2.5000" (2-1/2)
Radial Depth of Cut 0.0920"
Type III
Material Solid Carbide
