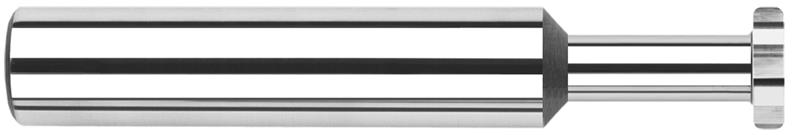

0.1250 in. (1/8) Cutter Diameter x 0.0050 in. Radius x 0.0200 in. Width x 0.1870 in. (3/16) Neck Length 6 Flute Carbide Corner Radius Keyseat Cutter

  • Item Code: 965120
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radius Decimal 0.0050"
Fractional Diameter 1/8"
Overall Length 1.5000" (1-1/2)
Reach Multiple (1.5x)
Neck Diameter 0.0620" (1/16)
Neck Length 0.1870" (3/16)
Number of Flutes 6
Type I
Brand Harvey Tool
Coating/Finish None
Material Solid Carbide
Top Corner Radius 0.005
Cutter Width 0.0200"
Decimal Diameter 0.1250"
Shank Diameter 0.1250" (1/8)
Radial Depth of Cut 0.0220"
