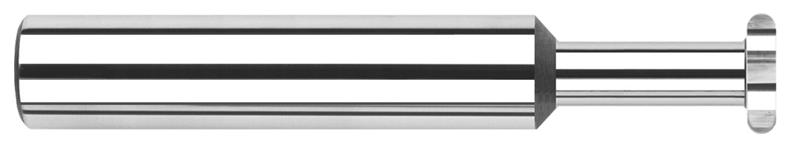

0.1562 in. (5/32) Cutter Diameter x 0.0100 in. Radius x 0.2340 in. (15/64) Neck Length 6 Flute Carbide Full Radius Keyseat Cutter

  • Item Code: 965310
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.0200"
Radius Decimal 0.0100"
Coating/Finish None
Material Solid Carbide
Overall Length 2.0000" (2)
Number of Flutes 6
Decimal Diameter 0.1562"
Neck Length 0.2340" (15/64)
Type I
Brand Harvey Tool
Fractional Diameter 5/32"
Radial Depth of Cut 0.0290"
Neck Diameter 0.0780" (5/64)
Shank Diameter 0.1875" (3/16)
Reach Multiple (1.5x)
