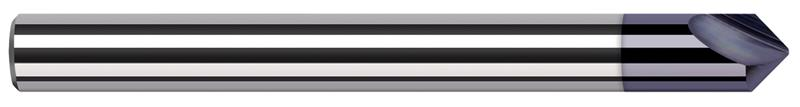

0.2500 in. (1/4) Shank Diameter x 0.0050 in. Radius x 90 Deg. Included 2 Flute AlTiN Coated Carbide Marking Cutter

  • Item Code: 966845-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Milling Legible Part Numbers in Difficult-to-Machine Materials
    • Radiused Tip Design for Improved Strength
    • 2 Flute Cutting Design Has Improved Strength Over Single Point Engravers
    • Produces Radius in Bottom of Groove
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.2500"
Angle per Side 45
Included Angle 90
Fractional Cutting Diameter 1/4"
Overall Length 2.5000" (2-1/2)
Radius Decimal 0.0050"
Brand Harvey Tool
Length of Cut 0.1229"
Number of Flutes 2
Shank Diameter Decimal 0.2500"
Material Solid Carbide
Shank Diameter Fractional 1/4"
Coating AlTiN
