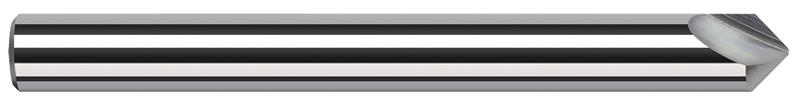

0.2500 in. (1/4) Shank Diameter x 0.0050 in. Radius x 90 Deg. Included 2 Flute Carbide Marking Cutter

  • Item Code: 966845
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Milling Legible Part Numbers in Difficult-to-Machine Materials
    • Radiused Tip Design for Improved Strength
    • 2 Flute Cutting Design Has Improved Strength Over Single Point Engravers
    • Produces Radius in Bottom of Groove
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.1229"
Angle per Side 45
Included Angle 90
Decimal Cutting Diameter 0.2500"
Brand Harvey Tool
Coating None
Shank Diameter Fractional 1/4"
Material Solid Carbide
Fractional Cutting Diameter 1/4"
Number of Flutes 2
Overall Length 2.5000" (2-1/2)
Radius Decimal 0.0050"
Shank Diameter Decimal 0.2500"
