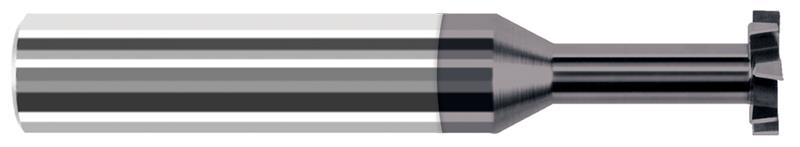

0.3750 in. (3/8) Cutter Diameter x 0.0050 in. Radius x 0.0620 in. (1/16) Width x 0.5620 in. (9/16) Neck Length 8 Flute AlTiN Coated Carbide Corner Radius Stagger Keyseat Cutter

  • Item Code: 967230-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design for freer cutting action
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Alternating RH/LH shear flutes, RH cut
    • Relieved to allow cutting on?both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Fractional Diameter 3/8"
Reach Multiple (1.5x)
Decimal Diameter 0.3750"
Type I
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
Radius Decimal 0.0050"
Coating/Finish AlTiN
Cutter Width 0.0620" (1/16)
Material Solid Carbide
Top Corner Radius 0.005
Neck Length 0.5620" (9/16)
Radial Depth of Cut 0.0840"
Neck Diameter 0.1870" (3/16)
Number of Flutes 8
Shank Diameter 0.3750" (3/8)
