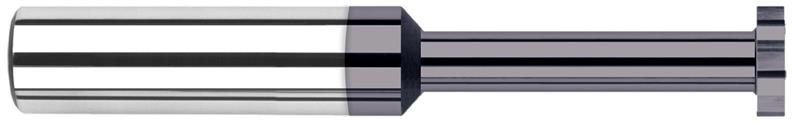

0.0930 in. (3/32) Cutter Diameter x 0.0620 in. (1/16) Width x 0.2810 in. (9/32) Neck Length 4 Flute AlTiN Coated Carbide Square Keyseat Cutter

  • Item Code: 967762-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish AlTiN
Brand Harvey Tool
Fractional Diameter 3/32"
Neck Length 0.2810" (9/32)
Decimal Diameter 0.0930"
Type I
Radial Depth of Cut 0.0210"
Reach Multiple (3x)
Overall Length 1.5000" (1-1/2)
Cutter Width 0.0620" (1/16)
Material Solid Carbide
Neck Diameter 0.0470" (3/64)
Number of Flutes 4
Shank Diameter 0.1250" (1/8)
