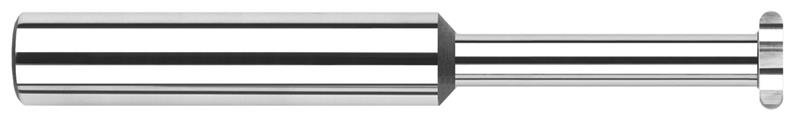

0.3750 in. (3/8) Cutter Diameter x 0.0394 in. Radius x 1.1250 in. (1-1/8) Neck Length 6 Flute Carbide Full Radius Keyseat Cutter

  • Item Code: 968539
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Coating/Finish None
Material Solid Carbide
Overall Length 3.0000" (3)
Neck Diameter 0.1870" (3/16)
Decimal Diameter 0.3750"
Fractional Diameter 3/8"
Shank Diameter 0.3750" (3/8)
Cutter Width 0.0788"
Neck Length 1.1250" (1-1/8)
Radius Decimal 0.0394"
Type I
Number of Flutes 6
Radial Depth of Cut 0.0840"
Reach Multiple (3x)
