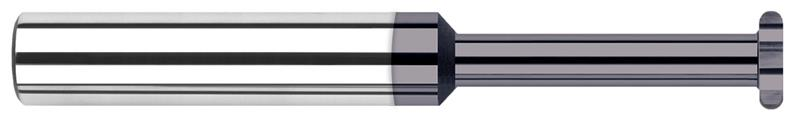

0.3750 in. (3/8) Cutter Diameter x 0.0625 in. (1/16) Radius x 1.1250 in. (1-1/8) Neck Length 6 Flute AlTiN Coated Carbide Full Radius Keyseat Cutter

  • Item Code: 968562-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 6
Radial Depth of Cut 0.0840"
Radius Fractional 1/16"
Cutter Width 0.1250" (1/8)
Neck Diameter 0.1870" (3/16)
Coating/Finish AlTiN
Radius Decimal 0.0625"
Shank Diameter 0.3750" (3/8)
Reach Multiple (3x)
Type I
Decimal Diameter 0.3750"
Fractional Diameter 3/8"
Material Solid Carbide
Brand Harvey Tool
Neck Length 1.1250" (1-1/8)
Overall Length 3.0000" (3)
