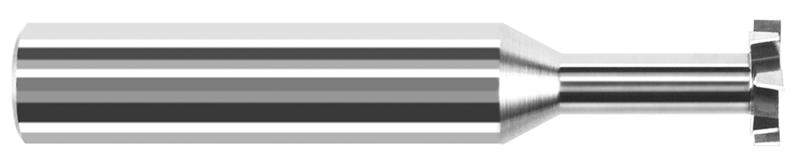

0.1250 in. (1/8) Cutter Diameter x 0.0150 in. (1/64) Width x 0.1870 in. (3/16) Neck Length 6 Flute Carbide Square Stagger Keyseat Cutter

  • Item Code: 969815
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design with alternating RH / LH shear flutes, RH cut
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Relieved to allow cutting on both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish None
Material Solid Carbide
Number of Flutes 6
Radial Depth of Cut 0.0220"
Fractional Diameter 1/8"
Brand Harvey Tool
Decimal Diameter 0.1250"
Neck Diameter 0.0620" (1/16)
Neck Length 0.1870" (3/16)
Shank Diameter 0.1250" (1/8)
Type I
Cutter Width 0.0150" (1/64)
Overall Length 1.5000" (1-1/2)
Reach Multiple (1.5x)
