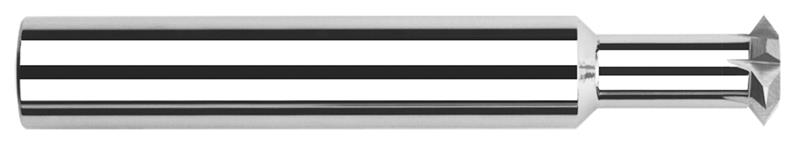

0.3750 in. (3/8) Cutter Diameter x 0.1490 in. Width x 1.5000 in. (1-1/2) Neck Length 6 Flute Carbide Pointed Double Angle Shank Cutter

  • Item Code: 969905
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
    • Reduced neck for long reach machining
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 50
Brand Harvey Tool
Overall Length Decimal 3.5000"
Coating None
Decimal Cutting Diameter 0.3750"
Neck Diameter 0.2500" (1/4)
Cutter Width 0.1490"
Material Solid Carbide
Neck Length 1.5000" (1-1/2)
Number of Flutes 6
Shank Diameter 0.3750" (3/8)
Overall Length Fractional 3-1/2"
Type I
Fractional Cutting Diameter 3/8"
Included Angle 100
