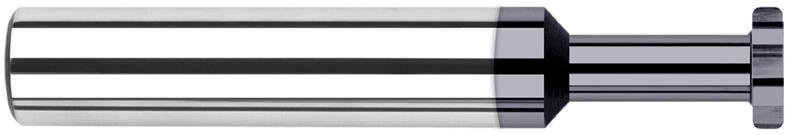

0.3750 in. (3/8) Cutter Diameter x 0.0150 in. (1/64) Radius x 0.2500 in. (1/4) Width x 0.5620 in. (9/16) Neck Length 8 Flute AlTiN Coated Carbide Corner Radius Keyseat Cutter

  • Item Code: 970080-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.2500" (1/4)
Neck Diameter 0.1870" (3/16)
Shank Diameter 0.3750" (3/8)
Top Corner Radius 0.015
Coating/Finish AlTiN
Material Solid Carbide
Radial Depth of Cut 0.0840"
Radius Fractional 1/64"
Reach Multiple (1.5x)
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
Decimal Diameter 0.3750"
Number of Flutes 8
Radius Decimal 0.0150"
Type I
Fractional Diameter 3/8"
Neck Length 0.5620" (9/16)
