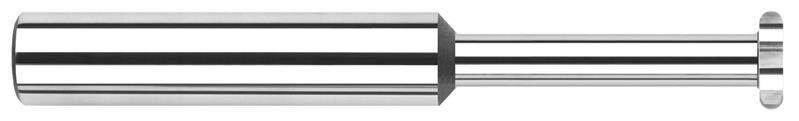

0.2500 in. (1/4) Cutter Diameter x 0.0156 in. (1/64) Radius x 0.7500 in. (3/4) Neck Length 6 Flute Carbide Full Radius Keyseat Cutter

  • Item Code: 971415
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Diameter 0.1250" (1/8)
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Radial Depth of Cut 0.0530"
Reach Multiple (3x)
Fractional Diameter 1/4"
Coating/Finish None
Radius Decimal 0.0156"
Type I
Decimal Diameter 0.2500"
Radius Fractional 1/64"
Material Solid Carbide
Neck Length 0.7500" (3/4)
Shank Diameter 0.2500" (1/4)
Brand Harvey Tool
Cutter Width 0.0312" (1/32)
