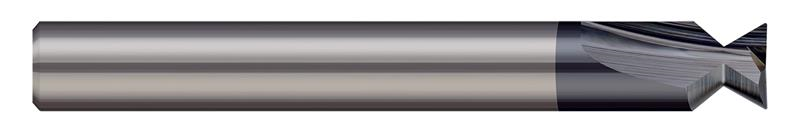

0.3750 in. (3/8) Cutter Diameter x 48 Deg. Included 3 Flute AlTiN Coated Carbide Pointed Dovetail Cutter

  • Item Code: 973124-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Offered with sharp corner .003", .005", or .010" Corner Radius
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.3750"
Length of Cut 0.2500" (1/4)
Shank Diameter 0.3750" (3/8)
Brand Harvey Tool
Included Angle 48
Angle per Side 24
Fractional Cutting Diameter 3/8"
Number of Flutes 3
Overall Length 2.5000" (2-1/2)
Coating/Finish AlTiN
Neck Diameter 0.1520"
Material Solid Carbide
