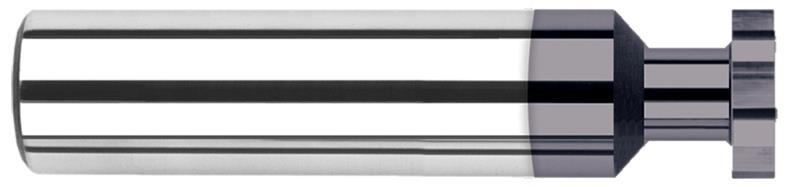

0.3125 in. (5/16) Cutter Diameter x 0.0780 in. (5/64) Width x 0.1870 in. (3/16) Neck Length 6 Flute AlTiN Coated Carbide Square Deep Keyseat Cutter

  • Item Code: 973440-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Type II
Decimal Diameter 0.3125"
Coating/Finish AlTiN
Shank Diameter 0.3125" (5/16)
Fractional Diameter 5/16"
Neck Length 0.1870" (3/16)
Radial Depth of Cut 0.0910"
Brand Harvey Tool
Reach Multiple (0.5x)
Cutter Width 0.0780" (5/64)
Material Solid Carbide
Neck Diameter 0.1090" (7/64)
